MINING EQUIPMENT & PLANTS

IMMA’s mining, crushing and screening solutions assures the latest technology in terms of material, casting, quipment, after-sales, components with the most competitive pricing from a customer-based engineering company. IMMA comes up with cooperations supplied by in-house and global reputable manufacturers. That enables IMMA’s project:

A wide range of solutions for the rojects
Solutions for aggregates, ores, enrichment, fine screening
Reliable and sustainable quality above standards
Best Return-Of-Investment
Minimized running cost
Worldwide spare part and maintenance abilities
Maximized efficiency
Custom made solutions

Crushers

Mineral Process & Enrichment

Best in the class for process and enrichment solutions Highest efficiency and productivity Enrichment process from 1mm to 45 micron Unique solutions for:

Aggregate
Construction Chemicals
Moist Clay
Emery and Silica Sand
Perlite
Limestone
Gypsum

Aluminum
Calcite
Olivine
Zeolite
Magnesite
Bentonite
Pomice

Jaw Crushers IMC Series

CAPACITY : 70-1.200 tph
FEEDING SIZE : Up to 1200 mm
Optimized crushing chamber, feed and crushing efficiency! Energy saving up to 30%
Strong bearings for long life endurance
Stable and solid eccentric shaft forging & billet processing
Mn22% casting and plates
Centralized lubrication,
Gasket type discharge adjustment
Low noise & less dust and Easy Maintenance
Rack diversification by welded heavy frame or modular removable frame,
Integrated motor base design, occupying smaller area
Deep-V Cavity design to increase, crushing efficiency by moment of inertia and Crushing stroke;
High output capacity comparing to any equivalent competitor
Large crushing ratio;
Long life cycle by hyperboloid jaw plates via smaller wears to extended life time of 3 to 4 times
Double wedge discharge adjustment system / step-less adjustment: Simpler, safer and faster;

	IMC-80	IMC-110	IMC-125	IMC-140	IMC-145	MC150	MC160
Length of Feed (mm）	800	1100	1250	1400	1400	1400	1600
Width of Feed (mm）	510	850	950	1070	1100	1200	1200
Max Feed Edge (mm）	450	700	800	860	1000	1000	1050
Eccentric Shaft Speed （rpm）	350	260	220	220	220	220	220
Motor Power（kW）	75	160	160-185	200	200	220	250-315

Cone Crushers MCH Series

CAPACITY : 70-1.200 tph
FEEDING SIZE : Up to 1200×1600 mm
Large crushing ratio,
High production efficiency:
High eccentricity, large crushing ratio, fast speed, up to 750 RPM
Improved production capacity by 30%~40%;
Hydraulic protection and hydraulic cavity cleaning,
High automation,
Reduced downtime;
Integrated hydraulic lubrication, thin oil lubrication system design, the use of U\T labyrinth seal and positive pressure fan to ensure reliable dust;
To achieve flexible cavity type switching through replacing liner, cutting ring, fastening bolts;
Reasonable structure, reliable operation, less consumption of wearing parts, low operating cost;
The same upper chamber group can be used for coarse, medium and fine cavities, which greatly enhances the convenience and flexibility of customer use;

Hydraulic Impact Crushers INP Series

CAPACITY : 100-2.000 tph
FEEDING SIZE : Up to 1.500 mm
Coarse, medium and fine crushing with large crushing ratio and good grain shape of finished products.
Optimize heavy-duty rotor design, increased rotational inertia and improved productivity
Unique locking device of wedge plate hammer to obtain a convenient disassemble, safe and reliability
Flexible configuration for entire models by two or three cavities, cavity type and wear-resistant plate hammers
Hydraulic design equipped to open the frame and adjust discharging port conveniently;
Modular design of wearing parts: Wear-resistant lining plates, minimized, interchangeable, different wear degrees, utilization rate of wearing parts and reduce inventory

Model	Size of Feed Opening	*Rotor size DL**	Max feeding size	Max Rotating Speed	Capacity	Motor power	Weight
Model	(mm)	(mm)	a(mm)	rpm	(t/h)	(kw)	(t)
INP1110	1020×820	1100×1000	600 (300)a	800	150-250	132-200	9250
INP1213	1320×880	1200×1300	600 (350)	700	200-300	200-250	13000
INP1315	1540×930	1300×1500	600 (400)	700	300-400	250-355	16500
INP1520	2040×995	1500×2000	700 (400)	600	350-600	400-630	27100
NP1620	2040×1630	1600×2000	1300 (700)	500	650-950	400-500	41430

Vertical Shaft Impact Crushers IVS Series

CAPACITY : 70-955t/h
MAX FEEDING SIZE : 30-60mm
PROCESS: Aggregate, iron ore, copper ore, cement, artificial sand, fluorite, limestone, slag, etc.
Vertical shaft impact crusher / sand maker
Highest efficiency for sand making & ore processing
High-quality finished product crushing
Multi-purpose usage in one machine
Multi-stage crushing to optimize product quality
High safety protection level
Convenient maintenance
Easy installation

Model	Max Feed edge (mm)		Capacity (t/h)		Power
Model	Sand Making	Reshaping	Fed From Center	Fed From Center + Around	(kw)
IVS1280	≤40（60）	≤60	550-655	750-955	2×400kw
IVS1263	≤40（50）	≤60	455-485	650-855	2×315kw
IVS1150	≤40（50）	≤55	345-368	550-725	2×250kw
IVS1145	≤30（40）	≤40	250-360	500-640	2×220kw
IVS9532	≤30（35）	≤40	180-280	350-540	2×160kw
IVS8522	≤30	≤40	120-190	240-380	2×110kw
IVS7615	≤30	≤35	70-140	150-280	2×75kw

Ball Mills IBM Series

CAPACITY : 60-255 tph
MAX FEEDING SIZE: 25mm
Key element to obtain milling after crushing.
Strong adaptability to materials, continuous production,
Large capacity and crushing ratio (Up to 300),
Easy to adjust the fineness of the grinding product;
Suitable for dry and wet operation;
Simple structure, solid, reliable operation, simple maintenance and management, high operating rate;
Strong sealing, can be negative pressure operation.

Model	Speed (rpm)	Loading Capacity (t)	Feeding Size (mm)	Discharge Size (mm)	Capacity (tph)	Power (kW)	Weight (t)
IBM900x1800	36~38	1.5t	≤20	0.075~0.89	0.65~2	18.5kw	5.5t
IBM900x3000	36	2.7t	≤20	0.075~0.89	1.1~3.5	22kw	6.7t
IBM1200x2400	36	3t	≤20	0.075~0.6	1.5~4.8	30kw	12t
IBM1200x3000	36	3.5t	≤25	0.074~0.4	1.6~5	37kw	12.8t
IBM1200x4500	32.4	5t	≤25	0.074~0.4	1.6~5.8	55kw	13.8t
IBM1500x4500	27	7.5t	≤25	0.074~0.4	2~5	75kw	16.8t
IBM1500x5700	28	11t	≤25	0.074~0.4	3~6	110kw	21t
IBM1830x3000	25.4	12t	≤25	0.074~0.4	3.5~6	130kw	25.8t
IBM1830x3600	25.4	13.5t	≤25	0.074~0.4	4~10	130kw	29t
IBM1830x4500	25.4	15t	≤25	0.074~0.4	4.5~12	155kw	35.5t
IBM1830x6400	24.1	21t	≤25	0.074~0.4	6.5~15	210kw	43t
IBM1830x7000	24.1	23t	≤25	0.074~0.4	7.5~17	245kw	43.8t
IBM2100x3000	23.7	15t	≤25	0.074~0.4	6.5~36	155kw	34.8t
IBM2100x3600	23.7	21t	≤25	0.074~0.4	7~38	180kw	36t
IBM2100x4500	23.7	24t	≤25	0.074~0.4	8~43	245kw	38t
IBM2100x7000	23.7	26t	≤25	0.074~0.4	8.5~48	280kw	56.6t
IBM2200x4500	21.5	27t	≤25	0.074~0.4	9~45	280kw	51.8t
….
IBM5030x6400	14.4	216t	≤25	0.074~0.4	68~386	2500kw	320t
IBM5030x8300	14.4	266t	≤25	0.074~0.4	88~500	3300kw	403t
IBM5500x8500	13.8	338t	≤25	0.074~0.4	108~615	4500kw	525t

Vibrating Screens TE Series

Designed to have a wide range of applications with high capacities

Industrial protected vibromotor,Steel spring wire,Labyrinth tapped SS 4140 screen gears,Welded solid structureConstant chassis and solid structureReliable spare parts and tools,Long-lived and minimized operation cost,

Standard Models:

Model 2TE1640: 1600 mm x 4000 mm with 2 decks
Model 3TE1650: 1600 mm x 5000 mm with 3 decks
Model 3TE2050: 2000 mm x 5000 mm with 3 decks
Model 3TE2060: 2000 mm x 6000 mm with 3 decks

Model 4TE2060: 2000 mm x 6000 mm with 4 decks
Model 4TE2060: 2000 mm x 6000 mm with 4 decks
Model 3TE2460: 2400 mm x 6000 mm with 3 decks
Model 4TE2460: 2400 mm x 6000 mm with 4 decks

Trommel GTS Series

CAPACITY : Up to 850 tph
Economical cost-effective along with high efficiency
Developed by Japanese technology
Simple, basic and compact structure
Smooth operation without vibration, good mute effect;
Large processing capacity, strong sorting ability, small installation inclination,
Unplugged screen with accurate particle size sorting;
Simple mesh replacing

Equipped with bag-breaking props for solid waste screening with no winding.

Model	Drum Diameter (mm)	Drum Length(mm)	Speed (rpm)	Capacity (tph)	Power (kW)
GTS1550	1500	5000	17	25-160	11
GTS1560	1500	6000	17	25-180	11
GTS1860	1800	6000	14	35-250	15
GTS1870	1800	7000	14	55-350	18.5
GTS2050	2000	5000	12	70-500	22
GTS2070	2000	7000	12	80-580	22
GTS2280	2200	8000	10	130-850	30

VCR Fine Screens VCR Series

The “VCR” Technology

Non-vibrating structure body
Less vibrating structure enables long lifetime!
Multi-vibration Units to create a controlled resonance on the screen-wire (VCR Tech)
Customized calibration for each mineral and screening purpose at startup only
Sandwich Sealing helps to protect the screen-wires and side panels
Energy saving up to 60%
No blockage of mineral / material during processing at the screen-wires
Extended screen-wire lifetime
Adjustable screen-wire slope angle
Adjustable machine legs & angle (Optional: Hydraulic Slope Adjustment)

Adjustable remaining material for screening
VSS -Innovative Vibration Suppressing System: Suspension supports to suppress the vibration between the screen-wire and machine body! Less vibration much more comfort& efficiency!
Screen-wire replacement in 30 mins
Easy and quick repairs and maintenance
No lubrication is required at any VCR!
Vibrating motor replacement while the machine works
Easy maintenance via the poles/holes between decks
Special designed, low-costed PU screen-wire designed for VCR!

Dry Screens

Wet Screens

Zig-zag Screens

Auxiliaries

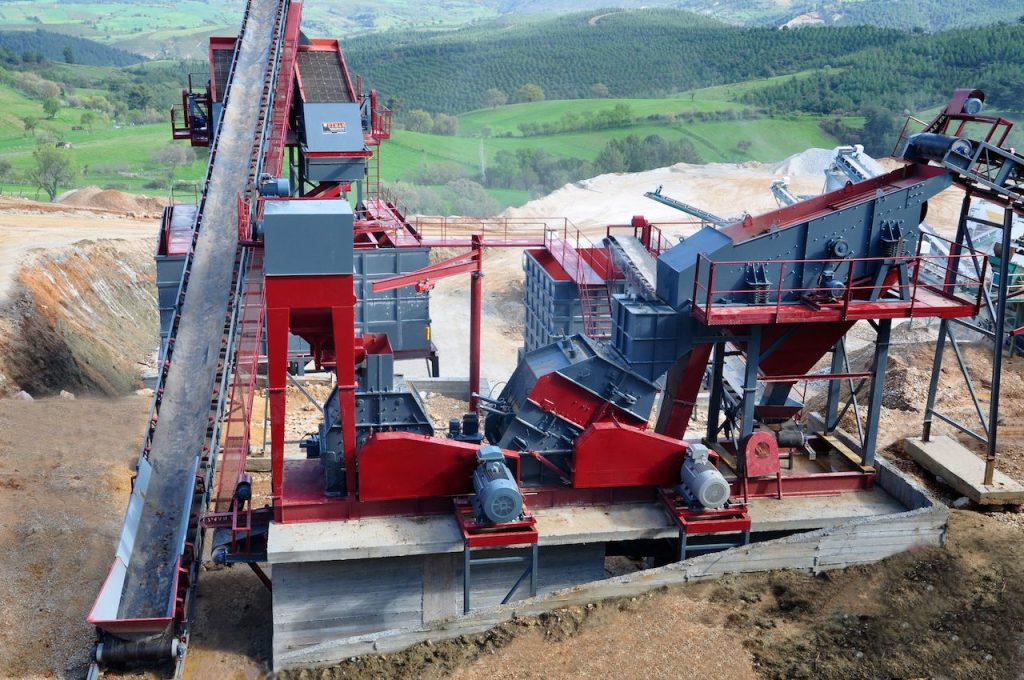

IMMA Global has a unique crushing and screening solution to obtain best in the class quarry and pits with maximized optimum solutions.

IMMA supplies primary, secondary and tertiary crushers by cooperation of global crusher manufacturers as MetsoTM, SandvikTM and/or worldwide OEM suppliers, to enable a high professional and competitive plant with own EPC, engineering, design, manufacturing and operation abilities to fulfill the range. In addition to micronized and regular screens, conveyor belts, washer, hopper, rock drill, etc. IMMA obtain a full range for a single-source turn key solutions.
